■PRODUCT FEATURES
◎Reliable and durable, the transmission system for tractor is manufactured using advanced itallan technology. characterized by forced cooling, forced lubrication, and heavy load transmission.
◎The impact-free and noise-free gear shifting is realized due to the synchronizer. The 12F+4R or 24F+8R makes for the good adaptability and high working efficiency of 110-140 HP wheeled tractor.
◎The independently controlled LUK dual clutch has good reliability and durability.
◎The hydraulic steering and hydraulic braking system can provide flexible and convenient operation to reducethe work strength of the driver.
◎The hydraulic wet disc brake is safe and reliable for use.
◎The independent PTO shaft can satisfy multiple operation needs such as rotary tilage, harvesting, sowing fertilizing and rice milling, etc. lt has the synchronizing PTO function to meet the requirements of special operations.
◎The hydraulic lifting system adopts independent oil-line structure. There is a return oil filter device adopted for the hydraulic system. The accurate flirtation makes for low system contamination and high reliability; it provides a variety of control modes of tiling depth such as strength control, position control, combined control of strength and position, and floating control, etc. The hydraulic high pressure force into earth is optional.
◎The adjustable single or double-acting multi-way valve, as well as the 1~3-sets hydraulic output, is conducive to the outstanding adaptability of this farming equipment.
◎China stage lll (equate to Euro lll-A/Tier lll) emissions standards diesel engine is available.

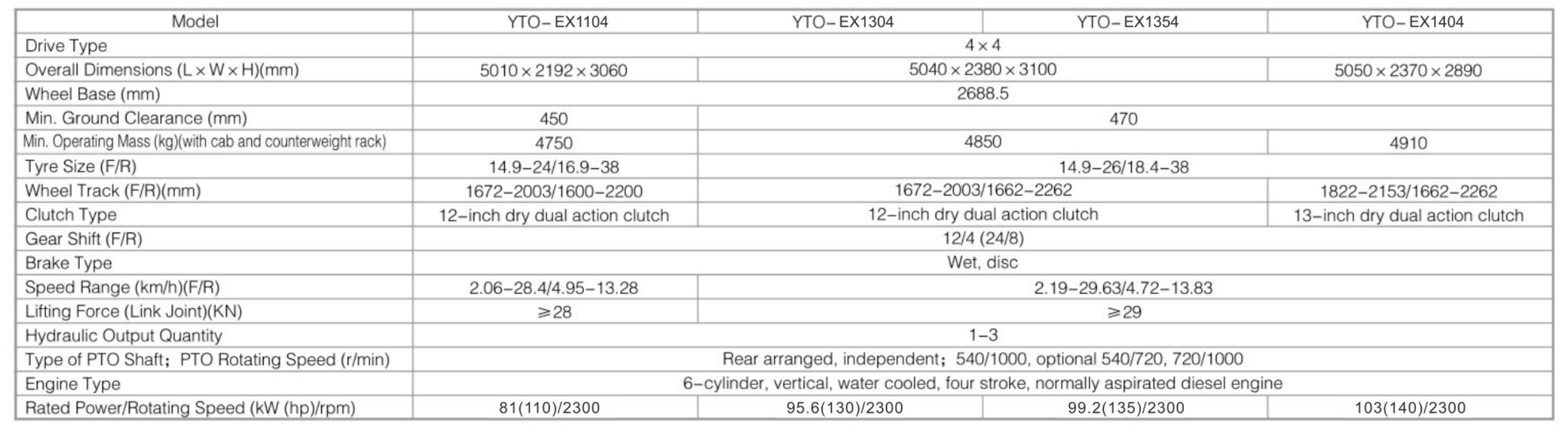

■PRODUCT TECHNICAL PARAMETERS
